Installation: Automatic

This guide is for beginners and people who don't want to manually configure the firmware, it allows the user to configure the firmware using the configuration tool.

Requirements

  1. VSCode with PlatformIO IDE
  2. Python

Configuration

  1. Download the .zip file of the firmware source code from here
  2. Unzip the source code file
  3. Open the unzipped folder using VSCode
  4. Open terminal
  5. Execute the tool:- python otwConfigurator.py or python3 otwConfigurator.py
  6. Start configuring using the command line tool

After succesfully configuring the firmware, you can now upload the firmware to your watch.

Uploading

  1. Connect your watch to your computer using a USB cable.

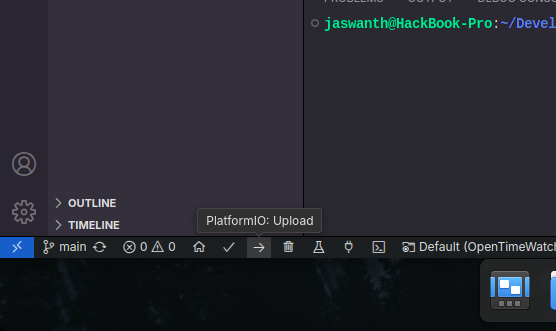

  2. Upload the firmware by clicking the upload button on thee bottom left side of the screen or press Ctrl+Alt+U

Image title

After successfully uploading the firmware you can start using the watch.
